Hikvision DS-3E0105P-E is a 4-port 10/100 Mbps unmanaged PoE switch with 58W power budget, IEEE 802.3af/at compliance, and extend mode for up to 250m transmission.

Compare

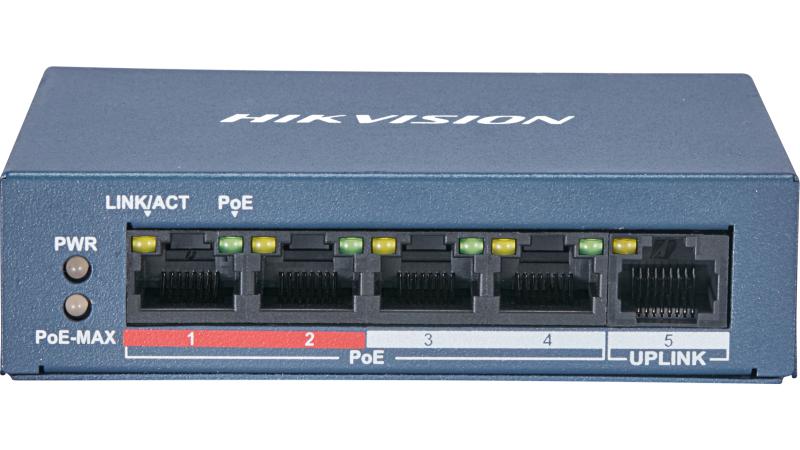

The Hikvision DS-3E0105P-E is a plug-and-play unmanaged PoE switch designed for small surveillance systems. It features four 10/100 Mbps PoE ports (ports 1–4) and one uplink port, providing a total PoE power budget of 58W. Each PoE port supports IEEE 802.3af (15.4W) or 802.3at (30W) standards, automatically detecting and powering compatible devices like IP cameras and VoIP phones. The extend mode allows data and power transmission up to 250 meters at 10 Mbps, ideal for long-distance camera installations. With 4kV surge protection and a compact metal housing, it’s built for reliability in demanding environments.butwalcomputer.com+4

Key Specifications

Parameter Value
Ports 4 × PoE (10/100 Mbps) + 1 × Uplink
PoE Standard IEEE 802.3af/at
PoE Budget 58W total
Max Port Power 30W per port
Extend Mode Up to 250m at 10 Mbps
Switching Capacity 1 Gbps
Surge Protection 4–6 kV
Power Supply 48–51V DC
